Features:
Infrared Sensor Switch working voltage :100-240V ; Load Power :≤40W ；Best sensing distance:3-5M ; Mounting Hole Diameter:25mm/0.98inch
There are 4 wires ,Red line is Live wire (L); the outermost blue line is Neutral wire (N);Yellow line and inside blue line connect to light bulb or energy-saving lamp .
PIR motion sensor switch has feature of small size and lightweight, easy to install and operate in room or cabinet, plug and play.

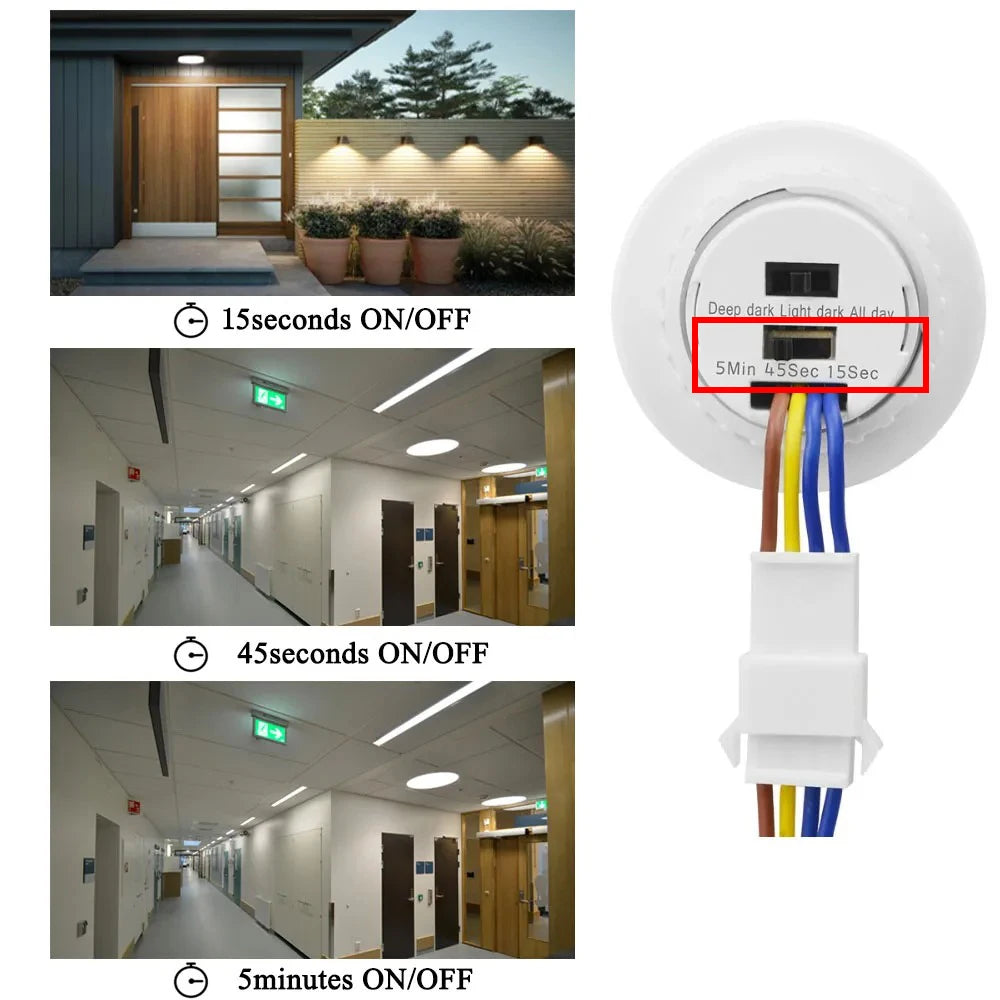

Function :Auto switch on/off in the dark when you enter into the induction range, and the time delay has 3 way of 15 seconds, 45 seconds, 5 minutes adjustable .In addition to the automatic control of LED lights, it can also be used to control exhaust fans, doorbells or other devices.
Specification:
Type:MotionSensorlightSwitch
Color:White
WorkingVoltage:AC85-265V,50/60Hz
Outputpower:≤40W
ModeSetting:DeepDark/lightDark/Allday
SensingDistance:3-6m
TimeDelay:15Secs45Secs5Min
AngleCoverage:110°
Extreme Temperature Using:-10 °C-+ 45 °C
Standbypowerconsumption:<0.1W
Application:LEDlamp,LEDdownlight,ceilinglight,Energysaving lamp, fluorescent lamp.
Packageincluded:

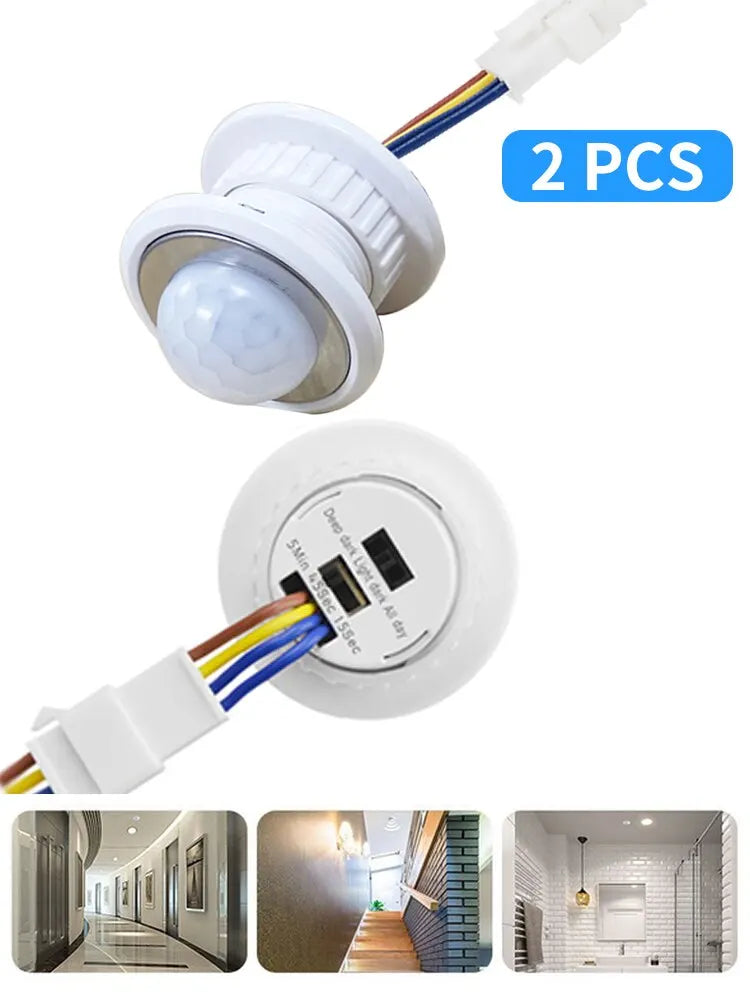

2 pieces of motion sensor switches.

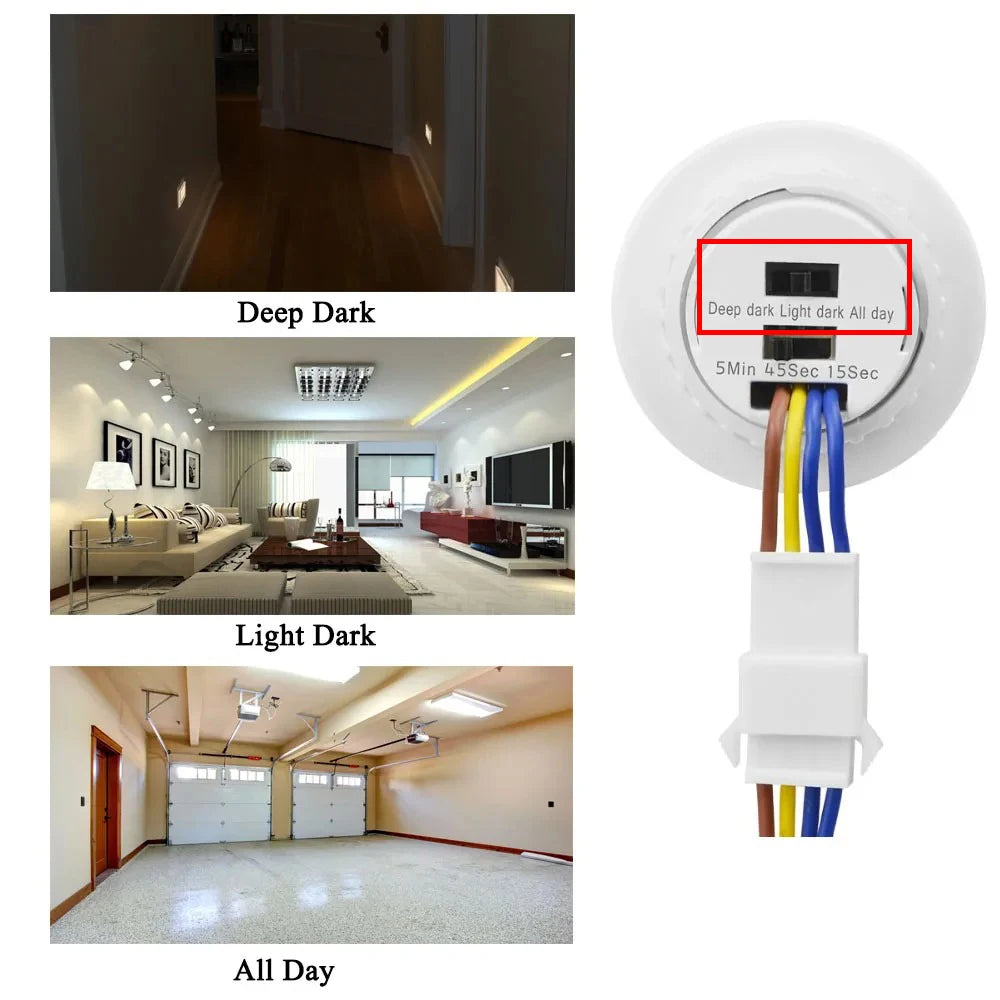

1. There are 3 modes to choose, deep dark/ light dark/ all day, the motion sensor will work with low brightness of environment/ middle brightness/ always work.
2. Please allow about 1-2mm error due to manual measurement, and slight color difference caused by light.
3. Pleaseleave5starfeedbackifyou'resatisfiedwithourproductsandservice,wewillappreciateit.
Product details:

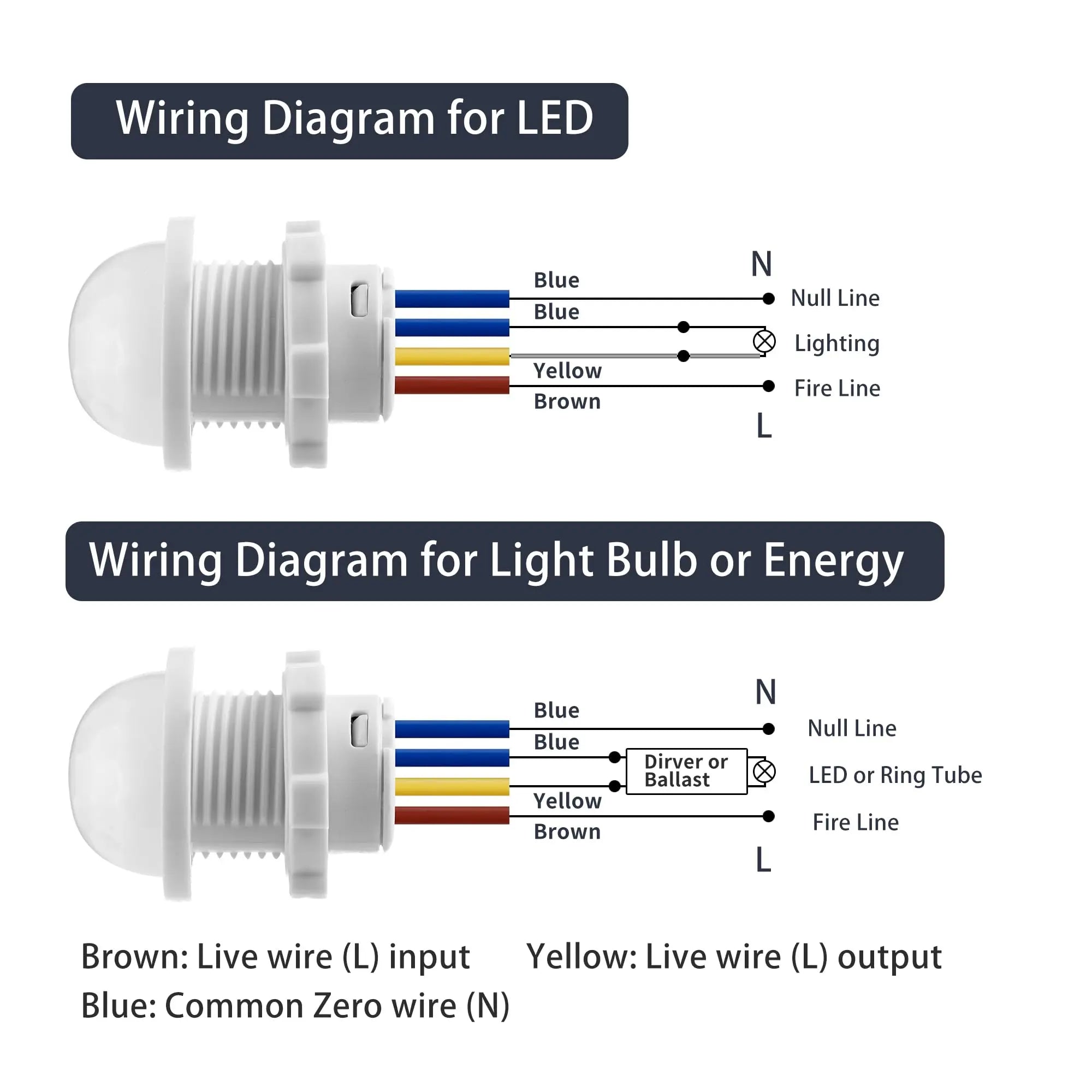

Wiring methods:
Product size: the diameter of the hole should be 25 or 26 mm.
Main feature: 3 levels of brightness, 3 levels of delay time
Product specification:
It's widely used with many kinds of lamps and numerous occasions.
